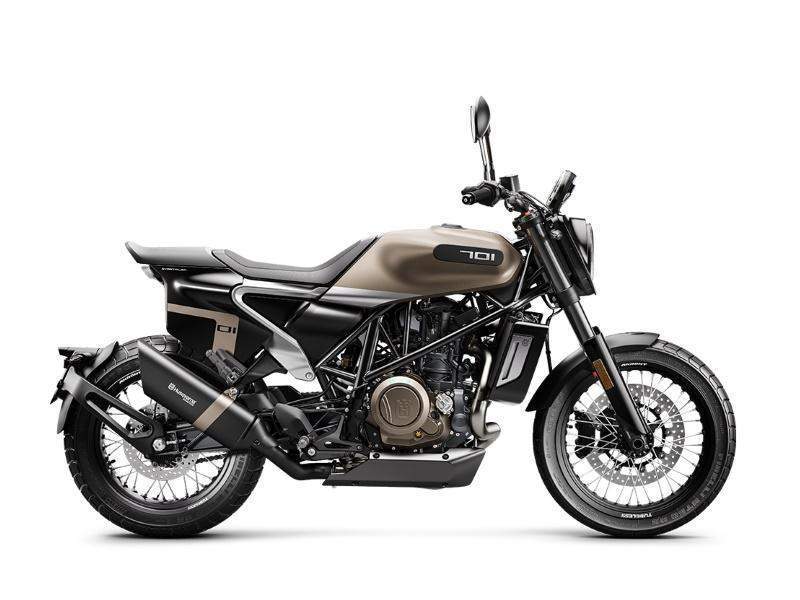

HTB2011 – Possible Fuel Leak – 2019-2020 Husqvarna 701 Svartpilen & 2018-2020 Husqvarna 701 Vitpilen Motorcycles

March 19, 2020 NHTSA CAMPAIGN NUMBER: 20V170000

Possible Fuel Leak

A fuel leak can increase the risk of a fire in the presence of an ignition source, and increase the risk of damage or injury.



NHTSA Campaign Number: 20V170

Manufacturer KTM North America, Inc.

Components FUEL SYSTEM, GASOLINE

Potential Number of Units Affected 1,500



Summary

KTM North America, Inc. (KTM) is recalling certain 2019-2020 Husqvarna 701 Svartpilen and 2018-2020 Husqvarna 701 Vitpilen motorcycles. Fuel may leak from the fuel level sensor and fuel pump mounting area.



Remedy

KTM will notify owners, and Husqvarna Motorcycle Dealers will replace the affected fuel tank, install new gaskets, and update software for proper fuel calibration, free of charge. Owners will be notified to take their motorcycles to a Husqvarna Motorcycle North America, Inc. (HMNA) dealership for repairs. The recall began July 7, 2020. Owners may contact HMNA customer service at 1-888-985-6090. HMNA’s number for this recall is HTB2012.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.



Check for KTM Recalls



---

HUSQVARNA TECHNICAL BULLETIN HTB2011

MARCH XX, 2020

*RECALL – STOP VEHICLE SALE NOTICE*

FUEL SEEPAGE AT THE FUEL LEVEL SENSOR MOUNTING AREA AND FUEL PUMP MOUNTING AREA

AFFECTED MODELS:

2018, 2019, 2020 – 701 VITPILEN
2019, 2020 – 701 SVARTPILEN

RESTRICTIONS: AFFECTED MODELS ARE LINKED BY VIN IN HUSQVARNA DEALER.NET



INITIAL INFORMATION:

STOP VEHICLE SALE NOTICE: THE REMEDY FOR THIS RECALL IS NOT YET AVAILABLE.  YOU WILL RECEIVE ANOTHER TECHNICAL BULLETIN ON THIS TOPIC AS SOON AS THE RECALL REPAIR IS AVAILABLE AND CAN BE COMPLETED ON AFFECTED MOTORCYCLES



Husqvarna Motorcycles North America, Inc. has decided that a defect which relates to motor vehicle safety exists with the motorcycle models and years listed above in which the fuel may seep or leak from the fuel level sensor and fuel pump mounting area. To ensure the highest level of safety, performance, reliability and customer satisfaction, Husqvarna Motorcycles is investigating the possibility of a fuel leak occurrence.



Dealers must immediately stop selling affected 701 SVARTPILEN AND VITPILEN motorcycles listed above. Vehicles will be locked out from retail registration in Dealer.net until the remedy is in place.



The remedy for this recall is not yet available.  You will receive another technical bulletin on this topic as soon as the recall repair is available and can be completed on affected motorcycles.



In the interim, Husqvarna Motorcycles North America, Inc. has notified all registered owners of the above affected motorcycles by mail that if they experience an occurrence of fuel leakage we request that they stop riding their motorcycle and contact their local authorized Husqvarna Motorcycles dealer to have their motorcycle inspected. A copy of the customer letter is included in this bulletin.



If you are contacted by a customer that says their 701 SVARTPILEN AND VITPILEN listed above is seeping or leaking fuel at the fuel level sensor and fuel pump mounting area please contact the Husqvarna Motorcycles Dealer Services department by calling 855-282-1054.



Once the remedy is decided, registered owners will be informed again of the remedy to correct the defect in cooperation with their local Husqvarna Motorcycles dealer.



---

IMPORTANT SAFETY RECALL NOTICE (Interim Notice) NHTSA Recall No. 20V-170



4/8/2020



Affected VIN: «Vin»
«PdiFirstName» «PdiLastName»
«PdiAddress1»
«PdiCity», «PdiProvince» «PdiPostalCode»



RE: Affected models:
2018, 2019, 2020 – 701 VITPILEN
2019, 2020 – 701 SVARTPILEN



Dear Husqvarna Motorcycles Customer,

This notice is sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act.  Husqvarna Motorcycles North America, Inc. has decided that a defect which relates to motor vehicle safety exists with the motorcycle models and years listed above, in which during operation or while sitting still, it is possible that fuel can seep or leak out of the fuel level sensor mounting area and fuel pump mounting area.  If this occurs, it could increase the risk of injury and/or damage to people or property.  In addition, a fuel leak in the presence of an ignition source can increase the risk of a fire. Husqvarna Motorcycles North America, Inc. is investigating the possibility of a fuel seepage/leakage occurrence, if you do experience the described occurrence/s you should immediately stop operating your motorcycle until further notice.

The remedy for this recall is not yet available. You will receive another letter as soon as the recall repair is available and can be completed on your motorcycle at no cost to you. In the interim, if you experience an occurrence of fuel seepage or leakage we request that you stop riding your motorcycle and contact your local authorized Husqvarna Motorcycles dealer to have your motorcycle inspected.

Once the remedy is decided and available, you will be informed of the remedy to correct the defect in cooperation with your local Husqvarna Motorcycles dealer.

If you have any questions related to the content of this letter, please contact Husqvarna Motorcycles North America, Inc. Customer Relations at (888) 985-6090 for assistance. Furthermore, if you believe that Husqvarna Motorcycles has failed to remedy this defect without charge or is unable to do so within a reasonable time, you may submit a complaint to the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, S.E., Washington, DC 20590 or call 1-888-327-4236 (TTY: 1-800-424-9153); or go to https://www.safercar.gov

If you have sold, traded or no longer own this motorcycle, it is important for the safety of the current owner that you inform Husqvarna Motorcycles North America, Inc., of current ownership or unknown ownership status by returning the second page of this letter in the enclosed self-addressed prepaid postage envelope.

Federal law requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within 10 days.

We apologize for any inconvenience and want to assure you that our commitment together with all Husqvarna Motorcycles Dealers is to provide you with the highest level of service, support and customer satisfaction.



Best Regards,
Dealer Services Department
Husqvarna Motorcycles North America, Inc.



Customer Record Update Form

NOTICE: If you no longer own this motorcycle or have had an address change please complete the following portion of this letter and return to Husqvarna Motorcycles in the enclosed self-addressed envelope.

Please complete and return this portion to Husqvarna Motorcycles if ownership of the referenced motorcycle has changed.  Please print legibly.



---

HUSQVARNA TECHNICAL BULLETIN HTB2012

JULY 1, 2020

*RECALL – REMEDY NOTICE*

RESUME VEHICLE SALES AFTER THE REMEDY REPAIR HAS BEEN PERFORMED



FUEL TANK REPLACEMENT – REMEDY REPAIR FOR FUEL SEEPAGE AT THE FUEL LEVEL SENSOR MOUNTING AREA AND FUEL PUMP MOUNTING AREA



AFFECTED MODELS:

2018, 2019, 2020 – VITPILEN 701
2019, 2020 – SVARTPILEN 701



RESTRICTIONS: AFFECTED MODELS ARE LINKED BY VIN IN HUSQVARNA DEALER.NET



THIS MODIFICATION HAS TOP PRIORITY AND MUST BE PERFORMED IMMEDIATELY TO ENSURE CUSTOMER SAFETY



INITIAL INFORMATION:

Husqvarna Motorcycles North America, Inc. had published a prior Technical Bulletin (HTB2011) that informed you to stop the sale of the SVARTPILEN 701 and VITPILEN 701 motorcycles listed above due to the possibility of fuel seepage or leakage from the fuel level sensor mounting area and the fuel pump mounting area.  HTB2011 informed you that the fuel leak occurrence was being investigated and that a remedy was in the process of being determined.



The remedy for this recall is now available and following are the details on how it must be performed.



The stop sale has been lifted and affected SVARTPILEN 701  and VITPILEN 701 motorcycles can be sold to retail customers again only after the remedy repair has been performed.



It has been determined that on affected units during operation there is a possibility of the fuel tank leaking from the fuel level sensor mounting area and the fuel pump mounting area.



In extreme cases this could result in the possibility of a fuel leak which may result in damage or possible fire, which could cause injury or death to the rider or others.  The cause of the defect is due to the unevenness that may occur on the sealing surfaces in the area of the fuel pump and fuel level sensor during the vehicles life cycle.  If unevenness occurs it does not allow for proper sealing between the fuel level sensor mounting area and fuel pump mounting area.  To remedy this defect, a new fuel tank has been developed to install on the motorcycle to prevent fuel leakage.  The new fuel tank has an increased wall thickness to prevent unevenness and improve sealing behavior. The increased wall thickness reduces the tank volume by approximately 0.8 liters.  The total fuel tank capacity of the new fuel tank is approximately 11.2 liters.



Husqvarna Motorcycles is notifying all registered owners of affected SVARTPILEN 701 and VITPILEN 701 motorcycles by mail. A copy of the customer letter is included in this bulletin. The customer should take the letter along with the affected motorcycle to an authorized Husqvarna Motorcycles Dealer to have the new fuel tank installed along with new gaskets for the fuel level sensor, fuel pump, and fuel tank insert.  After the fuel tank is replaced a new flash file must also be flashed into the dash for proper fuel level calibration.



This recall must only be performed by trained technicians with proper equipment. Dealers are not to send out parts to customers and should take every reasonable action to make sure the customer does not try to repair or perform the recall on their vehicle. Doing so is a violation of Federal law.  Dealers are to properly record the repair of the recall, report and return only the requested parts per this recall to Husqvarna Motorcycles North America, Inc.



Dealers must perform the installation of the new fuel tank along with the new gasket for the fuel level sensor, fuel pump, and fuel tank insert on all affected motorcycles in their inventory prior to any customer delivery.  It is also necessary to reflash the dash for proper fuel level calibration.  Any affected SVARTPILEN 701 and VITPILEN 701 motorcycles received directly from Husqvarna Motorcycles North America, Inc. requires the installation of the new fuel tank, fuel level sensor gasket, fuel pump gasket, and fuel tank insert gasket prior to customer delivery. Affected units acquired through dealer transfers or trades must be checked and remedied in Husqvarna Dealer.net to ensure and document that the repair has been performed.



Motorcycles that are affected must not be sold or operated until the new fuel tank and fuel level sensor, fuel pump, and fuel tank insert gaskets have been installed as described in this bulletin.  It is also necessary to reflash the dash for proper fuel level calibration. It is a violation of Husqvarna Motorcycles North America, Inc. policy for an authorized Husqvarna Motorcycles Dealer to deliver any affected units to customers before the procedure in this bulletin has been performed.



Husqvarna Motorcycles North America, Inc. must report to the federal government on a regular basis how many units have been inspected and repaired during this campaign. Be sure to submit your warranty request for reimbursement on every unit repaired to ensure accurate compliance numbers.





PROCEDURE FOR REPAIR:

Disassembly instructions

1. Remove the rider and passenger seat.
2. Remove the black cover and the fuel cap by removing the screws shown in the photo below (Figure 1).



3. Remove the tank bolt and the two bolts that hold on the side tank covers (Figure 2).



4. Remove the five bolts that hold on the tank covers to the tank. Once the bolts are removed slide the cover up to detach it from the side cover. Remove both the right and left side covers (Figure 3).



5. Remove the charcoal canister from its mount and remove the three tank mounting bolts (Figure 4).



6. Disconnect both the fuel pump connector and the fuel level sensor connector. Both connectors are on the right side of the motorcycle.



7. Disconnect the fuel line. Use caution when disconnecting it as a small amount of fuel may leak out. It’s advised to use rags to prevent fuel from spilling.



8. Once the tank is removed drain the remaining fuel from the tank. Remove the tank insert, fuel level sensor, fuel pump, and rear tank mounting bracket.



Reassembly instructions



9. Install the rear tank mounting bracket on the new updated tank and torque the bolts to 6 Nm (Figure 5).



10. Make sure to use the new gaskets that you ordered when installing the fuel level sensor, fuel pump, and fuel tank insert (Figure 6 and Figure 7).



11. When installing the new gaskets please follow the instructions carefully so the gaskets are installed in the proper manner. Please refer to pages 7, 8 and, 9.



12. Position the gasket on the fuel tank insert as shown in (Figure 8). The flat side of the gasket faces towards the insert.  The rounded tapered side of the gasket faces towards the fuel tank (red arrow).



13. Then install the fuel tank insert and torque the bolts to 3 Nm (Figure 9).



14. Install the fuel level sensor and torque the bolts 3 Nm. The gasket must be installed so the open side   of the gasket faces towards the sensor and the closed rounded side faces towards the tank (Figure 10).



15. The fuel pump gasket must be installed carefully by following the pictures shown below. Make sure the silver inserts (circled in red) in the gasket face down towards the fuel pump flange (Figure 11). The gasket can only be installed one correct way, the gasket has a small tab that needs to be located with the bolt hole in between the fuel outlet and the fuel pump wiring (boxed in green) (Figure 12). This is the only way the fuel pump gasket can be installed for proper sealing.



16. Install the fuel pump and use a crisscross pattern when installing bolts and torquing them. Use the crisscross pattern shown in (Figure 13). Tighten the bolts in two steps.  First tighten the bolts to 3 Nm in the crisscross pattern.  Then tighten them again a second time in the crisscross pattern and torque the bolts to 6 Nm to tighten them to their final torque specification.



17. Mount the tank on the motorcycle and connect the fuel line, fuel pump, and fuel level sensor. Torque the fuel tank mounting bolts to 10 Nm (Figure 14).



18. Install the charcoal canister to mounting the bracket and connect the fuel cap vent lines (Figure 15).



19. Install both side tank covers and torque the front bolts to 3 Nm (Figure 16).



20. Slide the rear tank cover down from the top and install the mounting bolts to 3 Nm (Figure 17).



21. Install the black cover and the fuel cap and torque bolts to 3 Nm (Figure 18).



22. Connect the motorcycle to the XC_2 tool and update the software to the latest version available. This is necessary to reflash the dash for proper fuel level calibration.  The new software version is DAKT_285H100A124.s19



23. Put fuel in the motorcycle and check for leaks.



24. Perform a test ride.



25. Take a picture of the tank part number and date code shown below so you can attach the photo to the warranty claim. Also cut out the date code which is circled below with a rotary cutting tool or similar cutting tool (Figure 19).



Please return the date code that you cut out of the original fuel tank.  Place it in a bag and write the VIN and claim number on the bag.  Send the cut out date code to the Husqvarna Motorcycles North America, Inc. Warranty Department at 1119 Milan Ave. Amherst, OH 44001.



Warranty Claims will only be processed after the replaced parts have been received. Parts must be bagged and include a copy of the claim.



If you need additional labels please order using the following part number:

FedEx Prepaid Return Label p.n. UH999094



Table 1 – Screw connections and torques

Component	Screw	Torque	Remark
Tank fastener screw	M6	10 Nm
Screw, fuel level sensor	M5	3Nm
Screw, fuel tank cap	M5x30	3Nm
Screw, fuel tank insert	M5x12	3Nm
Bushing, fuel tank spoiler	M6	3Nm
Screw, fuel pump	M6	6Nm	Attach screws, tighten in a crisscross pattern . First tighten to 3 Nm then tighten to their final torque specification of 6 Nm.
Screw, fuel tank spoiler	M6	3Nm



PARTS ORDERING:

Order the following parts for each affected motorcycle.  You must order all parts shown below to complete this recall properly.

1 QTY. 21007013100 – fuel tank

1 QTY. 21007008151 – gasket, tank insert

1 QTY. 76007080190 – gasket, fuel level sensor

1 QTY. 76007088010 – gasket, fuel pump



VEHICLE LOCK INFORMATION:

Unsold motorcycles that are linked to this recall are locked in the vehicle history.  The vehicle lock prevents the motorcycle from being retailed to a customer before the recall is performed.  In order to unlock the vehicle you must perform the recall and then submit a TI claim.  After the TI claim is submitted it will be possible to unlock and retail the motorcycle.



WARRANTY INPUT INFORMATION:

This Technical Bulletin only affects certain VIN numbers! Please check the VIN by performing a Motorcycle History search in Husqvarna Dealer.net to determine if it’s affected. If the motorcycle is affected you will see a link to the bulletin and its repair status in the history results. Husqvarna Motorcycles North America, Inc. will not warranty units whose VIN numbers are not listed as this bulletin does not apply to them. It is the responsibility of the dealer to determine if the unit requires this update by checking the vehicle history and understanding the instructions provided by this bulletin.



Please note that when entering a warranty claim on an affected model, you must perform a history search, expand the Technical Information window, click the blue arrow on the right side of the corresponding bulletin message.



You can now choose the TI Number from the list. The TI number for this procedure is according to the repairs performed and listed in the warranty claim input information; click Continue with selected action code.



The Warranty Claim is automatically entered for you, including parts & labor. You must enter additional information in the required fields marked with an asterisk “*” before submitting the claim to Husqvarna Motorcycles. The flat rate time for this repair is based on the action performed and provided in minutes.



Warranty type:

TI warranty

Component group:

07 – Fuel tank, seat, spoiler

Failure code:

700 – Series improvement

Failure causing part:

21007013000 – Fuel tank

Campaign code, parts, labor time:

Replacement of fuel tank Action code: 07_1776254_00 Labor time: 45 minutes Parts: 1 unit #21007013100 – fuel tank  1 unit #21007008151 – gasket, tank insert 1 unit #76007080190 – gasket, fuel level sensor  1 unit #76007088010 – gasket, fuel pump

Are stock items affected:

Yes



---

IMPORTANT SAFETY RECALL NOTICE

NHTSA Recall No. xxxxxxx



x/xx/2020

Affected VIN: «Vin»
«PdiFirstName» «PdiLastName»
«PdiAddress1»
«PdiCity», «PdiProvince» «PdiPostalCode»



RE: Affected models:

2018, 2019, 2020 – VITPILEN 701 2019, 2020 – SVARTPILEN 701



Dear Husqvarna Motorcycles Customer,



This notice is sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act.  Husqvarna Motorcycles North America, Inc. has decided that a defect which relates to motor vehicle safety exists with the motorcycle models and years listed above.  On affected motorcycles, during operation or while sitting still it is possible that fuel can seep or leak out of the fuel level sensor mounting area and fuel pump mounting area.  The presence of a leak could result in the possibility of damage or possible fire, which could cause injury or death to the rider or others.

To ensure the highest level of safety, performance, reliability and customer satisfaction, it is necessary to have a newly developed fuel tank along with new gaskets for the fuel level sensor, fuel pump and fuel tank insert installed.  A new flash file will also need to be downloaded and updated into the dash for proper fuel calibration.  This work must be performed by an authorized Husqvarna Motorcycles dealer and will be done free of charge.



Husqvarna Motorcycles North America, Inc. previously sent you a letter dated 4/8/2020 advising that it is possible that fuel can seep or leak out of the fuel level sensor mounting area and fuel pump mounting area and was being investigated by Husqvarna Motorcycles. At that time a remedy was in the process of being determined.

The cause of the defect is due to the sealing design of the current version fuel tank.  It does not allow for proper sealing between the fuel tank and fuel level sensor mounting area and fuel pump mounting area.  To remedy this defect, a new fuel tank with thicker walls has been developed to install on the motorcycle to prevent fuel leakage.  The thicker tank walls prevent unevenness at the fuel level sensor mounting area and fuel pump mounting area and improve sealing behavior. The increased wall thickness reduces the tank volume by approximately 0.8 liters.  The total fuel tank capacity of the new fuel tank is approximately 11.2 liters.

Please contact your authorized Husqvarna Motorcycles dealer (log onto www.husqvarna–motorcycles.com for a complete dealer listing) as soon as possible to arrange for installation of the replacement new fuel tank and gaskets.  It is suggested that you call your local authorized Husqvarna Motorcycles dealer to make an appointment to have the recall repair performed.  The replacement procedure will take approximately 1.0 hour.  However, it may be necessary to leave your motorcycle with the dealer for a longer period of time depending on their work schedule.   Please present a copy of this letter along with your motorcycle to your local authorized Husqvarna Motorcycles dealer.  There will be no charge for this service.

If you have any questions related to the content of this letter, please contact Husqvarna Motorcycles North America, Inc. Customer Relations at (888) 985-6090 for assistance. Furthermore, if you believe that Husqvarna Motorcycles has failed to remedy this defect without charge or is unable to do so within a reasonable time, you may submit a complaint to the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, S.E., Washington, DC 20590 or call 1-888-327-4236 (TTY: 1-800-424-9153); or go to https://www.safercar.gov



If you have sold, traded or no longer own this motorcycle, it is important for the safety of the current owner that you inform Husqvarna Motorcycles North America, Inc., of current ownership or unknown ownership status by returning the second page of this letter in the enclosed self-addressed prepaid postage envelope.



Federal law requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within 10 days.



We apologize for any inconvenience and want to assure you that our commitment together with all Husqvarna Motorcycles Dealers is to provide you with the highest level of service, support and customer satisfaction.



Best Regards,
Dealer Services Department
Husqvarna Motorcycles North America, Inc.



Customer Record Update Form

NOTICE: If you no longer own this motorcycle or have had an address change please complete the following portion of this letter and return to Husqvarna Motorcycles in the enclosed self-addressed envelope.

Please complete and return this portion to Husqvarna Motorcycles if ownership of the referenced motorcycle has changed.  Please print legibly.



---

IMPORTANT SAFETY RECALL NOTICE

NHTSA Recall No. 20V170



7/7/2020

Affected VIN: «Vin»
«PdiFirstName» «PdiLastName»
«PdiAddress1»
«PdiCity», «PdiProvince» «PdiPostalCode»



RE: Affected models:
2018, 2019, 2020 – VITPILEN 701
2019, 2020 – SVARTPILEN 701



Dear Husqvarna Motorcycles Customer,



This notice is sent to you in accordance with the requirements of the National Traffic and Motor Vehicle Safety Act.  Husqvarna Motorcycles North America, Inc. has decided that a defect which relates to motor vehicle safety exists with the motorcycle models and years listed above.  On affected motorcycles, during operation or while sitting still it is possible that fuel can seep or leak out of the fuel level sensor mounting area and fuel pump mounting area.  The presence of a leak could result in the possibility of damage or possible fire, which could cause injury or death to the rider or others.

It is necessary to have a newly developed fuel tank along with new gaskets for the fuel level sensor, fuel pump and fuel tank insert installed.  A new flash file will also need to be downloaded and updated into the dashboard for proper fuel calibration.  This work must be performed by an authorized Husqvarna Motorcycles dealer and will be done free of charge.



Husqvarna Motorcycles North America, Inc. previously sent you a letter dated 4/8/2020 advising that it is possible that fuel can seep or leak out of the fuel level sensor mounting area and fuel pump mounting area and was being investigated by Husqvarna Motorcycles. At that time a remedy was in the process of being determined.



The cause of the defect is due to the sealing design of the current version fuel tank.  It does not allow for proper sealing between the fuel tank and fuel level sensor mounting area and fuel pump mounting area.  To remedy this defect, a new fuel tank with thicker walls has been developed to install on the motorcycle to prevent fuel leakage.  The thicker tank walls prevent unevenness at the fuel level sensor mounting area and fuel pump mounting area and improve sealing behavior. The increased wall thickness reduces the tank volume by approximately 0.8 liters.  The total fuel tank capacity of the new fuel tank is approximately 11.2 liters.

Please contact your authorized Husqvarna Motorcycles dealer (log onto www.husqvarna-motorcycles.com for a complete dealer listing) as soon as possible to arrange for installation of the replacement new fuel tank and gaskets.  It is suggested that you call your local authorized Husqvarna Motorcycles dealer to make an appointment to have the recall repair performed.  The replacement procedure will take approximately 1.0 hour.  However, it may be necessary to leave your motorcycle with the dealer for a longer period of time depending on their work schedule.   Please present a copy of this letter along with your motorcycle to your local authorized Husqvarna Motorcycles dealer.  There will be no charge for this service.



If you have previously paid for repairs related to this defect, please contact Husqvarna Motorcycles North America, Inc. Customer Relations at (888) 985-6090 for details for possible reimbursement consideration.

If you have any questions related to the content of this letter, please contact Husqvarna Motorcycles North America, Inc. Customer Relations at (888) 985-6090 for assistance. Furthermore, if you believe that Husqvarna Motorcycles has failed to remedy this defect without charge or is unable to do so within a reasonable time, you may submit a complaint to the Administrator, National Highway Traffic Safety Administration, 1200 New Jersey Avenue, S.E., Washington, DC 20590 or call 1-888-327-4236 (TTY: 1-800-424-9153); or go to https://www.safercar.gov



If you have sold, traded or no longer own this motorcycle, it is important for the safety of the current owner that you inform Husqvarna Motorcycles North America, Inc., of current ownership or unknown ownership status by returning the second page of this letter in the enclosed self-addressed prepaid postage envelope.



Federal law requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee within 10 days.



We apologize for any inconvenience and want to assure you that our commitment together with all Husqvarna Motorcycles Dealers is to provide you with the highest level of service, support and customer satisfaction.



Best Regards,
Dealer Services Department
Husqvarna Motorcycles North America, Inc.



Customer Record Update Form

NOTICE: If you no longer own this motorcycle or have had an address change please complete the following portion of this letter and return to Husqvarna Motorcycles in the enclosed self-addressed envelope.

Please complete and return this portion to Husqvarna Motorcycles if ownership of the referenced motorcycle has changed.  Please print legibly.



---



Husqvarna Dealer Name	Street Address	City	State	Zip
The Motorcycle Shop, Inc.	944 E. 73rd.	Anchorage	AK	99518
Max Motorsports, Inc.	2591 Pelham Parkway	Pelham	AL	35124
Riggs Outdoor, LLC.	20453 Interstate 30	Benton	AR	72015
222 Action Sports, LLC.	3512 E. Southern Avenue	Mesa	AZ	85204
LZ Delta, LLC.	15500 N. Hayden Road	Scottsdale	AZ	85260
Screwie Lewie’s Motorsports Inc.	2031 West Deer Valley Road	Phoenix	AZ	85027
Champion Powersport Group, LLC.	4125 W. Summit Walk Ct.	Phoenix	AZ	85086
SJH Powersports, LLC.	4649 E. 22nd Street	Tucson	AZ	85711
Bay Motorsports, Inc.	735 Gilman Street	Berkeley	CA	94710
Dan Fitzgerald’s Jet World, Inc.	32203 Castaic Road	Castaic	CA	91384
Northstate Motorsports, Inc.	11096 Midway	Chico	CA	95928
Three Brothers Racing of OC, LLC.	1560 Superior Avenue Unit C	Costa Mesa	CA	92627
Seidner Enterprises, LLC.	1151 N. Azusa Avenue	Covina	CA	91722
Motalia, Inc.	1220 W. Washington Ave.	Escondido	CA	92029
Schneider Pacific Motorsports, Inc.	4001 Broadway	Eureka	CA	95503
James McKoane Enterprises, Inc.	6334 N. Blackstone	Fresno	CA	93710
Aqua Sports Performance Products, Inc	.1358 Pacific Coast Highway	Harbor City	CA	90710
Simi Motorsports, LLC.	6176 Condor Drive	Moorpark	CA	93021
Honsu Inc.	1025 N. Mountain Avenue	Ontario	CA	91762
Vega Motorsports, Inc.	1319 W. Katella Avenue	Orange	CA	92867
Skibyrd Motors, Inc.	15725 Lakewood Boulevard	Paramount	CA	90723
Fator’s Motorcycle Sales, Inc.	682 Grove Street	Redding	CA	96002
Sonrex Inc.	215 E. Redlands Boulevard	Redlands	CA	92373
Malcolm Smith Motorcycles, Inc.	7599 Indiana Avenue	Riverside	CA	92504
Teegarden Enterprises, Inc.	100 Louis Lane	Roseville	CA	95661
Nor-Cal Motorsports, Inc.	7343 Home Leisure Plaza	Sacramento	CA	95823
GPMC, Inc.	3617 India Street, Suite. B	San Diego	CA	92103
Iron Horse Motorsports, LLC.	7661 Monterey St.	Gilroy	CA	95020
Kobetz Enterprises	1850 North State Street	Ukiah	CA	95482
MotoXotica	357 Merchant Street	Vacaville	CA	95688
Mach 1 Motorsports, Inc.	510 Couch St.	Vallejo	CA	94590
Barnes Boys, Inc.	13815 Park Avenue	Victorville	CA	92392
Munroe Motors, Inc.	412 Valencia Street	San Francisco	CA	94103
Vey’s Powersports, Inc.	690 N. 2nd Street	El Cajon	CA	92021
AEO Powersports, LLC.	26145 Jefferson Ave., Suite 30	Murrieta	CA	92562
CL Associates, Inc.	1289 W. El Camino Real	Sunnyvale	CA	94087
VSSCO, Inc.	412 N. Chelton Road	Colorado Spring	CO	80909
Rocky Mountain Racing Works, Inc.	7025 Hwy 82 BLDG 1B	Glenwood Sprin	CO	81601
Grand Mesa Motorsports, LLC.	1325 Hwy 50	Delta	CO	81416
Handlebar Motorsports Inc.	346 South Camino del Rio	Durango	CO	81301
Power World, LLC.	61000 Highway 40	Granby	CO	80446
All-Terrain Motorsports, Inc.	3080 I-70 Business Loop	Grand Junction	CO	81504
Fay Myers Motorcycle Company	9700 E. Arapahoe Road	Greenwood Vill	CO	80112
Gunnison Motorsports, Inc.	500 W. Hwy 50 #105	Gunnison	CO	81230



Husqvarna Dealer Name	Street Address	City	State	Zip
G-Force Powersports, LLC.	7700 West Colfax Avenue	Lakewood	CO	80214
2-Schmidt Investments, LLC.	1400 E. Eisenhower Boulevard	Loveland	CO	80537
Moto Fit LLC.	10-12 Mill Plain Road	Danbury	CT	06811
Manchester Sports Center, Inc.	30 Adams Street	Manchester	CT	06042
Roost Powersports, LLC.	323 S. Main Street	Thomaston	CT	06787
Motorsports Nation – Waterford, LLC.	110 Cross Road	Waterford	CT	06385
Nosa, Inc.	6400 West 20Th Avenue	Hialeah	FL	33016
JP Cycles, Inc.	1200 Rinehart Road	Sanford	FL	32771
Sarasota PowerSports, Inc.	2001 University Parkway	Sarasota	FL	34243
Central Florida PowerSports, Inc.	2575 N Orange Blossom Trl	Kissimmee	FL	34744
WMR Competition Performance, Inc.	8300 SW Lost River Rd	Stuart	FL	34997
Xtreme Powersports, Inc.	1019 US HWY 301 S	Tampa	FL	33619
Cycle Specialty Co, Inc.	104 Kenwood Road	Fayetteville	GA	30214
Suzuki of Gainesville, Inc.	2750 Browns Bridge Rd.	Gainesville	GA	30504
Motorcycles of Atlanta, Inc.	1581 Cobb Parkway S.	Marietta	GA	30060
Montgomery PowerSports LTD.	550 N. Nimitz Highway	Honolulu	HI	96817
Edward’s Motorsports, LLC.	1010 34th Avenue	Council Bluffs	IA	51501
Carl’s Cycle Sales, Inc.	5550 W State St.	Boise	ID	83703
Grizzly Sports of Idaho, Inc.	4320 Cleveland Boulevard	Caldwell	ID	83605
Specialty Recreation & Marine, LLC.	722 W. Appleway Avenue	Coeur d’Alene	ID	83814
Ron’s Tire	1255 N. Holmes Ave.	Idaho Falls	ID	83401
Guy’s Outdoor Equipment, LLC.	304 Thain Rd.	Lewiston	ID	83501
Rexburg Motor Sports, LLC	1178 University Boulevard	Rexburg	ID	83440
Action Cycles ‘N Sleds, LLC.	2540 Addison Ave. East	Twin Falls	ID	83301
Hall’s Harley-Davidson, Inc.	3801 N. Dirksen Parkway	Springfield	IL	62707
BRINNdustries, LLC.	3477 South Street	Lafayette	IN	47905
Central KY Motorsports, LLC.	1050 E. New Circle Rd.	Lexington	KY	40505
David Hutchins	1298 New State Hwy	Raynham	MA	02767
JT Motorsports, Inc.	1557 Tilco Dr.	Frederick	MD	21704
Dalee Inc.	825 Golden Avenue	Battle Creek	MI	49014
Pen, Inc.	892 County Road 480	Marquette	MI	49855
Central Motor Sports, Inc.	905 Corporate Drive	Mt. Pleasant	MI	48858
Platinum Powersports, LLC.	11745 Cedar Rock Dr NE	Rockford	MI	49341
US27 Motorsports & Trailers, Inc.	5301 N. US 27 Highway	St. Johns	MI	48879
Crosstown Cycle, LLC.	9521 Garfield Ave. South	Bloomington	MN	55420
Larson’s Cycle, Inc.	205 S. Garfield Street	Cambridge	MN	55008
Bavarian Grassroots, Inc.	28 S. Spanish	Cape Girardeau	MO	63703
Donnell’s Motorcycles Inc.	17851 E. 40 Hwy.	Independence	MO	64055
D & D Motorcycles, Inc.	5935 S. Lindbergh Boulevard	St. Louis	MO	63123
Graham, Inc.	206 Wilson Drive	Senatobia	MS	38668
DS Powersports, LLC.	7420 Entry Way	Billings	MT	59101
Summit Motorsports, Inc.	25 Homestake Drive	Bozeman	MT	59718
Staack’s Inc.	102 E. Galena Street	Butte	MT	59701
Sports City Cyclery	101 57th Street S.	Great Falls	MT	59405



Husqvarna Dealer Name	Street Address	City	State	Zip
Penco Adventures, Inc.	2310 South Highway 93	Kalispell	MT	59901
Kurt’s Polaris, Inc.	2904 West Broadway	Missoula	MT	59808
Palmer Motorsports, Inc.	2569 N. Highway 16	Denver	NC	28037
William L. Harper Jr.	1108 Spartanburg Highway	Hendersonville	NC	28792
10 Cycles, LLC.	10501 Monroe Rd.	Matthews	NC	28105
Full Throttle Motorsports	1101 Airport Road	Bismarck	ND	58504
G&S Motorsports, LLC.	459 Route 13 South, Unit C	Milford	NH	03055
Motorbikes Plus, LLC.	3 Cate Street	Portsmouth	NH	03801
R.E. Wallace, Inc.	284 Old Deal Road	Eatontown	NJ	07724
Pop’s Cycle, Inc.	115 Route 23 North	Hamburg	NJ	07419
Ocean County Powersports, LLC.	2130 Route 37 East	Toms River	NJ	08753
The Motorcycle Mall, Inc.	655 Washington Ave.	Belleville	NJ	07109
Bobbby J’s Yamaha, Inc.	4724 Menaul Boulevard NE	Albuquerque	NM	87110
The Power Center, Inc.	2000 N. Telshor Boulevard	Las Cruces	NM	88011
Hall Pass, LLC.	951 Jacks Valley Road	Carson City	NV	89705
LRD, Inc.	6275 S. Decatur Boulevard	Las Vegas	NV	89118
Nevada Motorcycle Specialties- A Partn	540 S. Rock Boulevard	Sparks	NV	89431
Don George’s Sports Center, Inc.	10295 Main Street	Clarence	NY	14031
Maddie’s Motor Sports, LLC.	6226 State Route 96	Farmington	NY	14425
Edelmann Sales, Inc.	172 Edelmann Lane	Troy	NY	12180
Athens Sport Cycles, Inc.	165 Columbus Road	Athens	OH	45701
Beaver Creek Cycle, LLC.	13172 St. Rt. 7	Lisbon	OH	44432
Wheelsports, Inc.	7959 E. Main Street	Reynoldsburg	OH	43068
Championship Powersports, Inc.	7755 State Route 108	Wauseon	OH	43567
Road Track & Trail Cycles, Inc.	600 W. Peak Boulevard	Muskogee	OK	74401
Turn 10, LLC.	8417 S. I-35 Service Road	Oklahoma City	OK	73149
Pro Caliber Motorsports of Oregon, Inc.	3500 N. Highway 97	Bend	OR	97703
Gresham Powersports, LLC.	540 NE 2nd Street	Gresham	OR	97030
MotoSport Motorcycles, Inc.	809  NE 28th Avenue	Hillsboro	OR	97124
Bill’s Motorcycles Plus, Inc.	1122 12th St. SE	Salem	OR	97302
L&D Race Tech, Inc.	1035 Marlin Avenue SE	Warrenton	OR	97146
Roundhouse Powersports, Inc.	2626 RT 764 Ste 1	Duncansville	PA	16635
Toy Tech, LLC.	424 Firehouse Road	Grantville	PA	17028
Scott Powersports, Inc.	1675 PA-Route 309	Coopersburg	PA	18036
Bentley’s Yamaha & Suzuki, Inc.	4451 William Penn Highway (R	Murrysville	PA	15668
Patton, Michael	21114 Fry Road	Saegertown	PA	16433
Imperial Power Sports	24 Nicholas Street	Slovan	PA	15078
Lojak Cycle Sales, Inc.	9030 Route 908	Tarentum	PA	15084
Eldred Powersports, LLC.	2091 Lycoming Creek Road	Williamsport	PA	17701
Action Motorsports, Inc.	1881 Whiteford Road	York	PA	17402
Osco, Inc.	8738 West Chester Pike	Upper Darby	PA	19082
Brian S. Vasko, LLC.	100 Elm Drive	Waynesburg	PA	15370
Evinmotors PR, Inc.	1250-1252 Avenida FDR	San Juan	PR	00920
Recreational Vehicles, Inc.	104 Halter Drive	Piedmont	SC	29673



Husqvarna Dealer Name	Street Address	City	State	Zip
High Gear, Inc.	2695 Lazelle Street	Sturgis	SD	57785
Mtn. View Motorsports, LLC.	4301 Highway 58	Chattanooga	TN	37416
Mid-State Motorsports, Inc.	1191 S. Walnut Avenue	Cookeville	TN	38501
David Brown’s Sport Center, Inc.	4203 Canyon Drive	Amarillo	TX	79110
TJ’s Cycle Sales & Service	10214 N. Interstate Hwy 35	Austin	TX	78753
Cycle Shack North, Inc.	1101 I-45 South	Conroe	TX	77301
Spring Valley Country Tavern, Inc.	557 North Conally Drive	Elm Mott	TX	76640
Powersports Partners, LLC.	520 W. Airport Freeway	Irving	TX	75062
Lubbock Sports, Inc.	4202 W Loop 289	Lubbock	TX	79407
Adventure Moto, LLC.	419 Metro Park Drive	McKinney	TX	75071
Midland Cycles, Inc.	5800 W. Highway 80	Midland	TX	79706
Texas Yamaha, Inc.	1660 FM 528	Webster	TX	77598
The Edge Powersports and Performanc	e14301 Minuteman Drive	Draper	UT	84020
Northstar of Logan, LLC.	2300 N. Main Suite A	North Logan	UT	84341
Monarch Recreational Sales & Service, I	350 W. 800 N.	Orem	UT	84057
Rocky Mountain ATV, Inc.	472 W. Buena Vista	Washington	UT	84780
ADS Motorsports, LLC.	2339 S. 1900 W.	West Haven	UT	84401
Skyline Power Sports	183 East Side Highway	Waynesboro	VA	22980
Mt. Baker Moto-Sports, LLC.	2111 Iowa Street	Bellingham	WA	98229
Skagit Powersports, Inc.	1645 Walton Drive	Burlington	WA	98233
Webb Power Sports, Inc.	2310 W. Dolarway Road	Ellensburg	WA	98926
Everett Powersports, Inc.	215 SW Everett Mall Way	Everett	WA	98204
XPR, LLC.	12268 North Frontage Road Ea	Moses Lake	WA	98837
JMC Motorsports, LLC.	1225 S. 10th Avenue	Pasco	WA	99301
Cliff’s Cycle Center, Inc.	1200 Charleston Beach Rd. W	Bremerton	WA	98312
K C Powersports, LLC.	7807 E. Sprague Avenue	Spokane	WA	99212
R&B Cycles, Inc.	4701 Center Street	Tacoma	WA	98409
Ride Motorsports, Inc.	19035 Woodinville Snohomish	Woodinville	WA	98072
Premier Power Sports, LLC.	1504 Fruitvale Bloulevard	Yakima	WA	98902
Enumclaw Recreational Vehicles, Inc.	408 Roosevelt Ave.	Enumclaw	WA	98022
Rob’s Performance Motosports, LLC.	601 Hwy Y	Johnson  Creek	WI	53038
Keytime Motorsports of Millston, LLC	28702 County Highway. EW	Warrens	WI	54666
Ridersville Cycle, LLC.	75 Goodtimes Drive	Berkeley Spring	WV	25411
Moto-Sport, Inc.	2322 Murphys Run Road	Bridgeport	WV	26330
Appalachian Offroad MC, LLC.	4742 West Washington Street	Cross Lanes	WV	25313
Bucky’s Outdoors, LLC.	146 S. Lincoln	Pinedale	WY	82941



---

5 Affected Products

Vehicles

MAKE	MODEL	YEAR
HUSQVARNA	SVARTPILEN 701	2019-2020
HUSQVARNA	VITPILEN 701	2018-2020



---

12 Associated Documents

Remedy Instructions and TSB

RCRIT-20V170-6009.pdf 950.148KB



---

Recall 573 Report – Amendment 1

RCLRPT-20V170-6817.PDF 216.362KB



---

ISSUED Interim Owner Notification Letter(Part 577)

RIONL-20V170-1065.pdf 156.505KB



---

Defect Notice 573 Report

RCLRPT-20V170-4765.PDF 214.98KB



---

Recall Acknowledgement

RCAK-20V170-8015.pdf 304.04KB



---

Miscellaneous Document – Dealer List

RMISC-20V170-5798.pdf 191.213KB



---

Recall 573 Report – Amendment 2

RCLRPT-20V170-8171.PDF 216.426KB



---

ISSUED Owner Notification Letter(Part 577)

RCONL-20V170-0863.pdf 128.816KB



---

Recall Quarterly Report #2, 2020-4

RCLQRT-20V170-6030.PDF 211.23KB



---

Recall Quarterly Report #1, 2020-3

RCLQRT-20V170-3741.PDF 211.128KB



---

ISSUED Owner Notification Letter(Part 577)

RCONL-20V170-2678.pdf 158.745KB



---

Safety Bulletin

RCSB-20V170-0171.pdf 166.662KB



---

Latest Recalls Documents

https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=20V170&docType=RCL



---



Last update on 2025-04-17 / Affiliate links / Images from Amazon Product Advertising API

---



This product presentation was made with AAWP plugin.
