NHTSA ID Number: 10108962
Manufacturer Communication Number: Product Bulletin
Summary
10″ and 12″ Magnet Spring and Lever Arm Update
1 Affected Product
Equipment
PRODUCT BULLETIN #389
Date: June 19, 2017
Subject: 10″ and 12″ Magnet Spring and Lever Arm Update
In keeping with Dexter
โs quest for continual improvement and a stronger product offering, Dexter is pleased to announce changes within the 10″ and 12″ electric brake offering. The update transitions from the existing magnet lever arm to a more durable design. The update concurrently requires a change to the magnet spring.
The changes are as follows, with pictures and part numbers shown below:
Magnet Spring โ The 046-080-00 will be replaced by 046-175-00. The new magnet spring changes shape, requiring a smaller circumference as the new larger magnet lever arm provides a more consistent mounting surface. The change also removes the hassle of inserting the magnet spring into the lever arm during assembly.
Magnet Lever Arm โ The lever arm part numbers do not change and will continue under the same part numbering scheme. The updated lever arm utilizes additional material at the base of the anchor post and can be identified by the lack of an indexing hole used for the previous magnet spring (see pictures below).
The new magnet spring and lever arm are compatible with all previous brake assemblies, but must be changed in conjunction with each other. Changing either component individually will create fitment issues and should be changed together. All existing magnet assemblies are compatible with the new magnet spring and lever arm. Moving forward, magnet service kits will include both the new and old magnet springs. As with all magnets, they should be replaced in pairs โ both sides of the axle.
Building safety into every brake, Dexter proudly manufactures our magnets and other brake components to the highest level of quality and integrity from our facility in the American heartland โ Albion, Indiana.
| Old Magnet Spring and Lever Arm | New Magnet Spring and Lever Arm |
| Magnet Spring P/N 046-080-00 | Magnet Spring P/N 046-175-00 |
Magnet kits that will now include both magnet springs:
| Part Number | Description |
| K71-104-00 | Magnet Replacement Kit for 10″ x 1-1/2″ and 10″ x 2-1/4″ brakes |
| K71-105-00 | Magnet Replacement Kit for 12″ x 2″ (5.2K and 6K) |
| K71-125-00 | Magnet Replacement Kit for 10″ x 2-1/4″ (4.4K) and 12″ x 2″ (7K) |
Brake assemblies affected:
D30 & D35 Series 10″ brake
| Part Number | Kit Number | Description |
| 023-472-00 | K23-472-00 | 10″ x 1-1/2″ LH |
| 023-473-00 | K23-473-00 | 10″ x 1-1/2″ RH |
| 023-476-00 | K23-476-00 | 10″ x 1-1/2″ LH Nev-R-Adjustยฎ |
| Part Number | Kit Number | Description |
| 023-477-00 | K23-477-00 | 10″ X 1-1/2″ RH Nev-R-Adjustยฎ |
| 023-026-00 | K23-026-00 | 10″ x 2-1/4″ LH |
| 023-027-00 | K23-027-00 | 10″ x 2-1/4″ RH |
| 023-216-00 | N/A | 10″ x 2-1/4″ LH 33″ Leads |
| 023-217-00 | N/A | 10″ x 2-1/4″ RH 33″ Leads |
| 023-086-00 | K23-086-00 | 10″ x 2-1/4″ LH with Park |
| 023-087-00 | K23-087-00 | 10″ x 2-1/4″ RH with Park |
| 023-468-00 | K23-468-00 | 10″ x 2-1/4″ LH Nev-R-Adjustยฎ |
| 023-468-01 | N/A | 10″ x 2-1/4″ LH Nev-R-Adjustยฎ 33″ Leads |
| 023-469-00 | K23-469-00 | 10″ X 2-1/4″ RH Nev-R-Adjustยฎ |
| 023-469-01 | N/A | 10″ X 2-1/4″ RH Nev-R-Adjustยฎ 33″ Leads |
D44 Series 10″ brake
| Part Number | Kit Number | Description |
| 023-454-00 | K23-454-00 | 10″ x 2-1/4″ LH Old Bolt Pattern |
| 023-454-01 | N/A | 10″ x 2-1/4″ LH Old Bolt Pattern 33″ Leads |
| 023-455-00 | K23-455-00 | 10″ x 2-1/4″ RH Old Bolt Pattern |
| 023-455-01 | N/A | 10″ x 2-1/4″ RH Old Bolt Pattern 33″ Leads |
| 023-462-00 | K23-462-00 | 10″ x 2-1/4″ LH New Bolt Pattern |
| 023-462-01 | N/A | 10″ x 2-1/4″ LH New Bolt Pattern 33″ Leads |
| 023-463-00 | K23-463-00 | 10″ x 2-1/4″ RH New Bolt Pattern |
| 023-462-01 | N/A | 10″ x 2-1/4″ RH New Bolt Pattern 33″ Leads |
| 023-478-00 | K23-478-00 | 10″ x 2-1/4″ LH New Bolt Pattern Nev-R-Adjustยฎ |
| 023-478-01 | N/A | 10″ x 2-14″ LH New Bolt Pattern Nev-R-Adjustยฎ 33″ Leads |
| 023-479-00 | K23-479-00 | 10″ x 2-1/4″ RH New Bolt Pattern Nev-R-Adjustยฎ |
| 023-479-01 | N/A | 10″ x 2-1/4″ RH New Bolt Pattern Nev-R-Adjustยฎ 33″ Leads |
D52 & D60 Series 12″ brake
| Part Number | Kit Number | Description |
| 023-105-00 | K23-105-00 | 12″ x 2″ LH 6K CSA |
| 023-105-09 | N/A | 12″ x 2″ LH 6K CSA 9 Hole Mounting |
| 023-106-00 | K23-106-00 | 12″ x 2″ RH 6K CSA |
| 023-106-09 | N/A | 12″ x 2″ RH 6K CSA 9 Hole Mounting |
| 023-112-00 | K23-112-00 | 12″ x 2″ LH 6K CSA with Park |
| 023-113-00 | K23-113-00 | 12″ x 2″ RH 6K CSA with Park |
| 023-458-00 | K23-458-00 | 12″ x 2″ LH 6K FSA |
| 023-458-01 | N/A | 12″ x 2″ LH 6K FSA 33″ Leads |
| 023-459-00 | K23-459-00 | 12″ x 2″ RH 6K FSA |
| 023-459-01 | N/A | 12″ x 2″ RH 6K FSA 33″ Leads |
D70 Series 12″ brake
| Part Number | Kit Number | Description |
| 023-180-00 | K23-180-00 | 12″ x 2″ LH 7K CSA |
| 023-359-00 | N/A | 12″ x 2″ LH 7K CSA 33″ Leads |
| 023-181-00 | K23-181-00 | 12″ x 2″ RH 7K CSA |
| 023-360-00 | N/A | 12″ x 2″ RH 7K CSA 33″ Leads |
| 023-464-00 | K23-464-00 | 12″ x 2″ LH 7K CSA Nev-R-Adjustยฎ |
| 023-464-01 | N/A | 12″ x 2″ LH 7K CSA 33″ Leads Nev-R-Adjustยฎ |
| 023-465-00 | K23-465-00 | 12″ x 2″ RH 7K CSA Nev-R-Adjustยฎ |
| 023-465-01 | N/A | 12″ x 2″ RH 7K CSA 33″ Leads Nev-R-Adjustยฎ |
Updates to the new magnet lever arm and magnet spring are running changes in production.
Please contact your Dexter Sales Engineer for additional questions, ordering information, and product availability.
Product Bulletin
Loading...
Reload document
Open in new tab
Bestseller No. 1

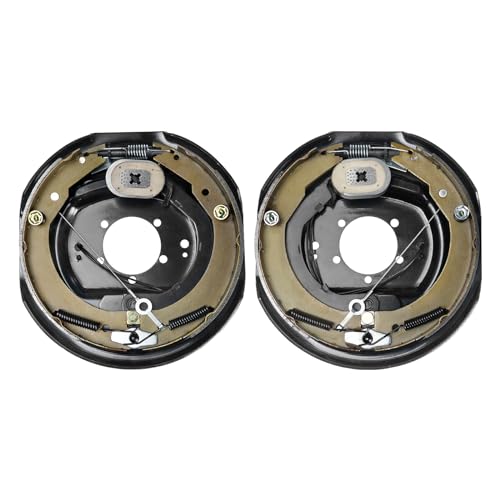

VEVOR Electric Trailer Brake Assembly, 12" x 2", 2 Pairs Self-Adjusting Electric Brakes Kit for 7000 lbs Axle, 5-Hole Mounting, Backing Plates for Braking System Part Replacement (2 Right + 2 Left)
