21-409 – 120VAC Wiring Connectors Not Mounted Properly – 2021 Keystone Montana High Country Trailers

โ€œThis site contains affiliate links for which OEMDTC may be compensatedโ€

May 19, 2021 NHTSA CAMPAIGN NUMBER: 21V368000

120VAC Wiring Connectors Not Mounted Properly

Wet electrical connections can increase the risk of a fire.



NHTSA Campaign Number: 21V368

Manufacturer KeystoneeBay RV Company

Components EQUIPMENT

Potential Number of Units Affected 3,292



Summary

KeystoneeBay RV Company (KeystoneeBay) is recalling certain 2021 High Country Montana trailers. The 120VAC wiring connectors for the slide room circuit were not mounted properly, which can allow water to enter the electrical connections.



Remedy

Dealers will inspect the connectors, and mount the connectors to the frame, free of charge. Owner notification letters were mailed June 18, 2021. Owners may contact KeystoneeBay customer service at 1-866-425-4369. KeystoneeBay’s number for this recall is 21-409.



Notes

Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.




KeystoneeBay RV Company

6/15/21



SAFETY ADVISORY # 21-409

HC Montana 120VAC Slide Room Connectors

KeystoneeBay is conducting a voluntary RECALL notification campaign in accordance with the National Highway Transportation and Safety Act. It has been decided that the vehicles in the recall population may have 120VAC wiring connectors for the slide room circuit that can get wet and stay wet for extended periods of time due to the way they are mounted. Under certain conditions if the 120VAC connections are wet for an extended period of time it can lead to an increased risk of fire and/or damage to personal property.



Models Included:

2021 HC Montana Fifth Wheels: All Models



Serial Number Range:

MA740000 – MA743291



Parts if needed after inspection (use proper part for gauge of wiring):

KRV # 103089 – Terminal – Molex – COC-1 – Cross Over Connector (This part may be ordered in bulk without a VIN)

KRV # 193194 – Wire – Connector – SJ – 12 Ga – 110 V – .340-.440 Diameter 19421-0001 โ€“ Molex (This part may be ordered in bulk without a VIN)

KRV # 192245 – Wire – Connector – SJ – 14 Ga – 110 V – .340-.440 Diameter – 19403-1310 (This part may be ordered in bulk without a VIN)

–   #14 x 1โ€ screws as needed



Tools Required:

– Screw gun – ยผโ€ screw bit

– Drill โ€“ 5/16โ€ Drill Bit



This Safety Advisory requires a Pre-Authorization & Photograph if damage is found

Note โ€“ Check serial number on Key Express to verify the campaign is open. Some vehicles were repaired before they left KeystoneeBay.

When performing warranty or recall service, please make certain that appropriate Personal Protective Equipment (PPE) is used.

The remedy is to inspect 120VAC wiring under each slide room from drop frame back. Remove approximately 3 foot of underbelly where 120VAC wires enter the underbelly from the slide room, check each slide room on the main living level of the unit. Inspect the Molex Connector mounting board to verify it is mounted on the frame rail, not lying on the underbelly.  If necessary, Inspect and replace damaged connectors and mount board to the frame rail.



Affected Slide Rooms by Model:

Model(s) Slide Rooms Number of Slide Rooms
280CK, 281CKSofa/Refrigerator, Entertainment2
294RL, 295RLKitchen, Dinette2
330RL, 331RLKitchen, Dinette2
334BH, 335BHKitchen, Dinette2
350BH, 351BHKitchen, Dinette2
362RDKitchen, Dinette, Bunk (2)4
364BH, 365BHKitchen, Dinette, Bunk (1)3
372RD, 373RDDinette1
376FL, 377FLDinette1
382TH, 383THDinette1
384BR, 385BRKitchen, Dinette, Bunk (1)3



REPAIR INSTRUCTIONS

Step 1

Locate the trailer on a level, flat, hard surface. Disconnect 12VDC and 120VAC power from the unit. Chock the wheels.



Step 2

Locate the 120VAC wiring under the slide room, note the lower level frame may have multiple slides with 120 VAC. Remove approximately 3 foot of the underbelly using a ยผโ€ screw bit to remove the fasteners. See Figure 1.  Inspect the wiring connectors from the slide room. See Figure 2.  If wiring connectors are mounted up off of the underbelly reattach the underbelly and proceed to warranty reimbursement. If connectors are not mounted to the frame rail (up off the under belly) and/or are damaged take clear photos of the damaged connectors and replace them using the parts listed above. Once they are replaced or if they are not damaged proceed to Step 3.



Step 3

Determine where the mounting board can be attached on the inside of the frame rail (usually right above where the wires enter the underbelly) and drill a 5/16โ€ hole in the rail. See Figure 3.  Using a #14 x 1 ยฝโ€ Hex screw attach the board on the inside of the frame rail, be certain that the mounting screw will not damage the wires. See Figure 4.



Step 4

Reattach and reseal the underbelly. Proceed to warranty reimbursement.





1 Affected Product

Vehicle

MAKEMODELYEAR
KEYSTONEeBayMONTANA HIGH COUNTRY2021




10 Associated Documents

Recall Acknowledgement

RCAK-21V368-4372.pdf 645.909KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [630.77 KB]




ISSUED Owner Notification Letter(Part 577)

RCONL-21V368-4515.pdf 92.512KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [90.34 KB]




Manufacturer Notices(to Dealers,etc)-21-409 dealers emailed 6-17-2021

RCMN-21V368-2062.pdf 87.138KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [85.10 KB]




Manufacturer Notices(to Dealers,etc)

RCMN-21V368-0754.pdf 98.241KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [95.94 KB]




Defect Notice 573 Report

RCLRPT-21V368-2392.PDF 215.184KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [210.14 KB]




Recall 573 Report – Amendment 1

RCLRPT-21V368-5233.PDF 215.287KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [210.24 KB]




Recall Quarterly Report #1, 2021-2

RCLQRT-21V368-7780.PDF 211.141KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.19 KB]




Remedy Instructions and TSB

RCRIT-21V368-3382.pdf 246.484KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [240.71 KB]




Recall Quarterly Report #3, 2021-4

RCLQRT-21V368-5238.PDF 211.33KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.38 KB]




Recall Quarterly Report #2, 2021-3

RCLQRT-21V368-5993.PDF 211.24KB

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [206.29 KB]




Latest Recalls Documents






โ€œThis site contains affiliate links for which OEMDTC may be compensatedโ€
Bestseller No. 1

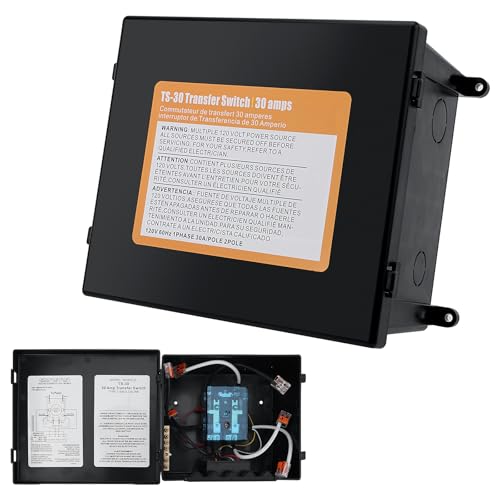

Go Power! TS-30 30 Amp Automatic Transfer Switch , Black
